General Project Information:
Experience needed in python: Beginner-Intermediate
Challenge level: Intermediate - Hard
Core Concepts: Functions, Coordinates On A 2D Plane, 2D Arrays
Prerequisites: Variables, Loops, Basic Turtle Concepts, Conditional Statements
Using these concepts you will learn how to turn a simple everyday game into a video game!
Features To consider:
- Creating a grid
- Drawing the x’s and o’s
- Keeping track of turns
- Checking if a player has won
- Checking where the player clicked on the screen
- Resetting the game if its a tie
Step 1 Drawing The Board:
First we have to draw the grid. You have to write a function to draw the grid, You can use the turtle goto function to do this, one line will look something like this.
We want to make the grid 400x400 in size.
You can then call the function right after the function.
Hint: The first like looks like this
Step 2 Drawing The X:
Next we need to make a function to draw an x, the function will have two arguments, x and y. You can also use the goto function to draw this. The x and y will refer to the bottom left corner of the square you are drawing in.
Hint 1: One square is 133x133.
Hint 2: You will need to put x + 133 and y + 133 in your code somewhere.
Step 3: Drawing The O:
We now can move on to drawing the o. This function will also have two arguments, x and y. These will aso point to the bottom left corner.
Hint 1: Turtle has a circle function.
Hint 2: You will need x + 67 and y + 5 in your code.
Step 4: Tracking Player Turns:
Now that we have all of the code to draw on the screen we have to make it useful, so lets add a way to keep track of whose turn it is. We can create a Boolean Dictionary to keep track of what players turn it is because there are only two players.
This will create a state variable which is an “array” with an index called ‘player’ which is set to false, it will also create an array of functions called players. The two functions in it are the drawx() and drawo() functions. We will use these to pick what shape to draw then a player clicks the screen.
Player x = False/0
Player o = True/1
Step 5: Clicking A Square:
When a player clicks the screen we need to do a few things
- Figure out whose turn it is
- Find the bottom left corner of the square clicked
- Draw a x/o in that square
- Switch whose turn it is
First we need a new variable which will be the draw function needed.
Hint: Use players and the int value of state
Next we need a function to find the bottom left corner of the square, we will have the coordinate of the place clicked to find the square.
Hint 1: We can use this function to find the value for x or y
Hint 2: If you floor() both x and y you will get the bottom left corner
After that we need to draw an x or o in that square, you can use the variable you created earlier with the new x and y values you got.
Finally you can switch the player's turns, use your state variable to change the players turns.
Hint: You can set a bool to not itself.
Step 6: Looping The Code:
At the end of your code you can use the done() function to loop the code we have written.
Step 7: Making A 2D Array To Store The Board:
Next in order to judge who won the game we have to create a 2D array to store the value of each spot on the grid, each spot should be initialized to ‘-’.
Step 8: Adding X’s And O’s To The Array:

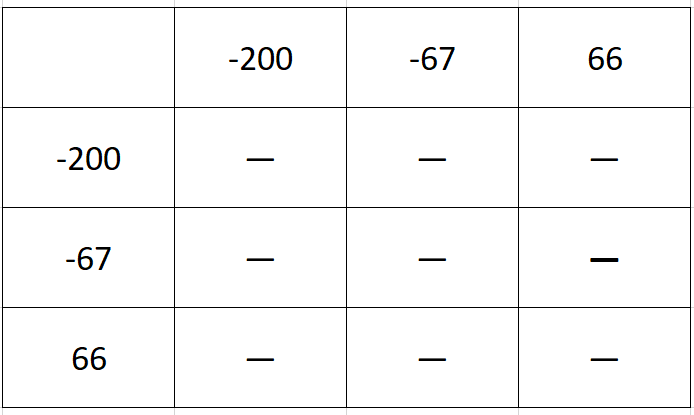

We now need to add each players moves to the array, in order to do that we must know all of the floored values for the x and y axis, the floored values look like this
Using this we can use if statements in the draw functions to add each move to the array.
Hint: Overwriting the x and y values with the correct index will help when adding to the array
Step 9: Making A Function To Check Who Won:
Using if statements inside of a for loop may help find every combination of lines of 3. You can also have one if statement for each combination, when you find a player that has 3 in a row then return the letter of the winner. This will be placed in the tap function near the end, it won't return anything if there is no winner.
Hint 1: You will need to compare 3 values against each other, also make sure they aren't blank spaces.
Hint 2: It may look something like this for a diagonal line
Step 10: Drawing The Winners Letter:
Where you call the function you will need to check who won and then clear the board if there isn't a winner. Otherwise you should call your draw function in the middle of the screen.
Hint: Using an if statement to check if it returns an x or o then calling the respective draw function is a good idea. You can use clearscreen() to clear the previous drawings.
Step 11: Restarting On A Tie:
Finally we can add the last function, a function that will check if the board is full of x’s and o’s, if it is it will clear the screen and redraw the grid, then it will also reset the board array. It will be called from inside the tap function right after you check if someone won.
Hint 1: You can use a for loop to check if each part of the board array has a ‘-’ if it does return.
Hint 2: You can use a double for loop to set each part of the board array to a ‘-’ if the board is full
